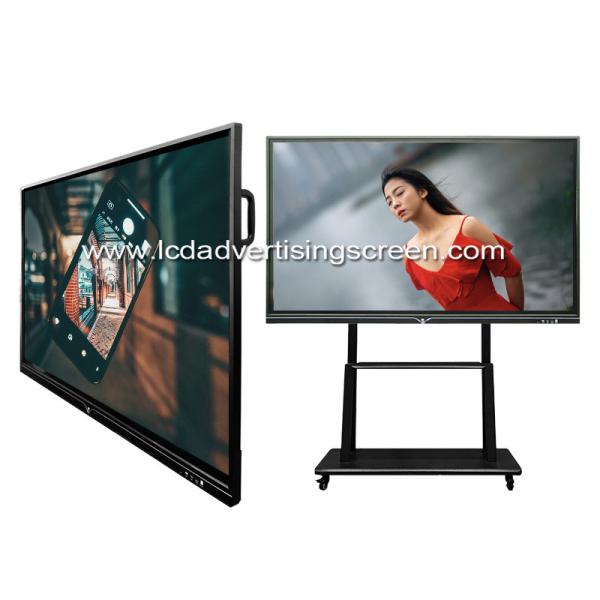

Interactive Infared Touch Whiteboard for school and meeting room in
65-98inch
Quick details:
1. Electronic whiteboard can achieve file sharing, can annotate on
whiteboard multi-directional key note,
Save, send to mailbox
2. Multi-terminal, dual system, windows, android, fast and
efficient
3. 178 all-seeing, anti-glare optional glass that enables video to
be anti-glare due to reflective refraction problems
4. Independent OPS, can choose Windows single system, android
single system, Windows android dual system
5. Support multi-touch, fast response, can support multiple people
to write, wipe, can add teaching conference software
6. High resoulation screen multi reflection 4k screen on choose.
7. Use 5G wifi or projector for the moible phone computer
connection.
Specification:
| Product name | 65inch interactive touch screen |
| Size | 65inch |
|
| LCD screen parameters | Backlight type
| LED |
| LCD screen resolution | 1920(H)×1080(V) |
| Viewing angle | 165/165/150/150(L/R/U/D) |
| Colour | 16.7M |
| Brightness | 400cd/m2 |
| Aspect ratio | 5000:1 |
| Response time | 4ms |
| Active area | 1430(H)×804mm(V) |
| Touch screen parameters | Identification principle | Infrared identification |
| Touch points | 6 or 10 points touch |
| Anti-light interference | Light heart of the various angles of the screen can be used
normally |
| Writing way | finger,Pen,diameter >5mm Opaque object |
| Touch precision | More than 95% of the touch area is ± 2mm |
| communication method | Full speed USB2.0/3.0 |
| Writing screen surface hardness | Physical steel mode 7 explosion - proof |
| Touch screen life | More than 80000 hours |
| PC configuration | CPU | Standard Intel I3 Dual Core 2.4G
|
| RAM | 4G DDR3 |
| Hard disk | 500GB hard disk |
| Network card | 100/1000M Gigabit Ethernet
|
| Hardware parameters | Video Input | Coaxial antenna port: a group |
| | Composite video (CVBS) input port: two groups |
| | Computer VGA port: a group |
| | Component Video interface: a group |
| | Multimedia USB interface: three groups |
| | HD interface (HDMI): a group |
| | MIC input |
| Touch screen USB input | Touch screen USB:a group |
| Audio imput | Composite Video (CVBS) Audio Input Port: One group |
| | Computer audio input interface: a group |
| | YPbPr audio input port: a group |
| Video output | Composite video audio output port: a group |
| Audio output | Left / Right Channel CVBS Output Port: One group |
| | Ear audio output: a group |
| Characteristic parameter | TV system | Image format:PAL |
| | Voice format:BG；DK；I;MN |
| | Decoding: 3D digital comb filter, 3D image motion noise reduction,
3D motion adaptive comb filter, etc. |
| Speaker characteristics | Speaker type: front speakers |
| | Speaker power: 10W × 2 |
| Input voltage | AC:100～240 V 50/60 Hz |
Power
| ≤180W |
| Standby Power consumption | ＜0.5W |
Net weight
| 42kg |
Gross weight
| 51kg |
Product dimension(L*W*T)
| 1469X887X63MM |
Carton packing size(L*W*T)
| 1575X1000X175MM |
Wall mount size (L*W)
| 600X510MM |
| environment | Relative humidity≤80﹪ |
| Storage temperature -10～+60℃ |
| Working temperature 0～+40℃ |
